Exterior Mesh
Click on image for bigger view

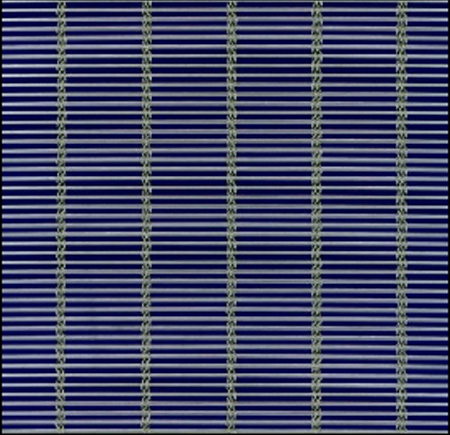

 Kalimera
Open Area
:
 approx. 44%
Cable Pitch
:
 36 mm
Weft wire Pitch
:
 4 mm
Thickness
:
 approx. 3.5 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 4 m

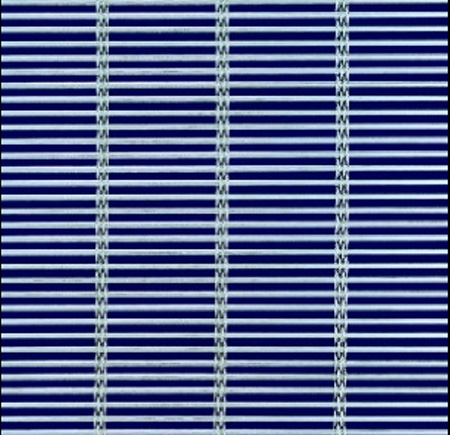

 Adio
Open Area
:
 approx. 44%
Cable Pitch
:
 36 mm
Weft wire Pitch
:
 4 mm
Thickness
:
 approx. 3.5 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 4 m

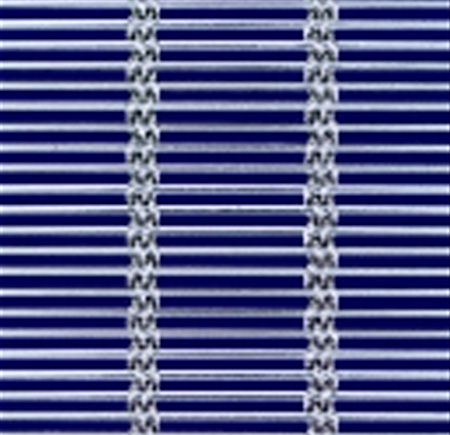

 Festo
Open Area
:
 approx. 40%
Cable Pitch
:
 50 mm
Weft wire Pitch
:
 6 mm
Thickness
:
 approx. 7 mm
Maximum mesh width
:
 6.5
Standard mesh width
:
 4 m

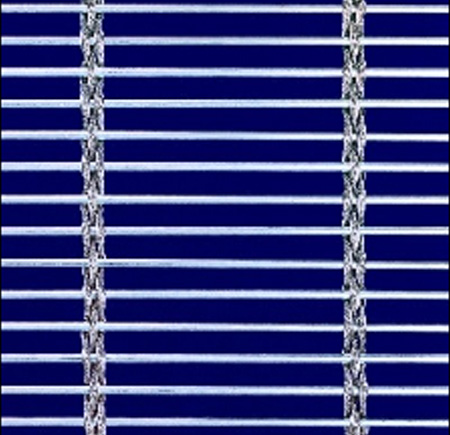

 Serene
Open Area
:
 approx. 62.1%
Cable Pitch
:
 80 mm
Weft wire Pitch
:
 10 mm
Thickness
:
 approx. 6.2 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 4 m

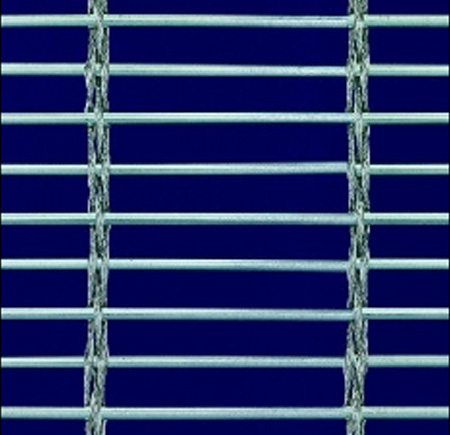

 Spacio
Open Area
:
 approx. 65.9%
Cable Pitch
:
 110 mm
Weft wire Pitch
:
 14.5 mm
Thickness
:
 approx. 10 mm
Maximum mesh width
:
 6.5
Standard mesh width
:
 4 m

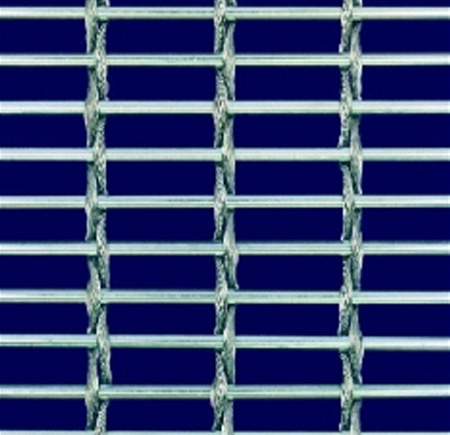

 Tuscon
Open Area
:
 approx. 61.5%
Cable Pitch
:
 40 mm
Weft wire Pitch
:
 14.5 mm
Thickness
:
 approx. 10 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 4 m

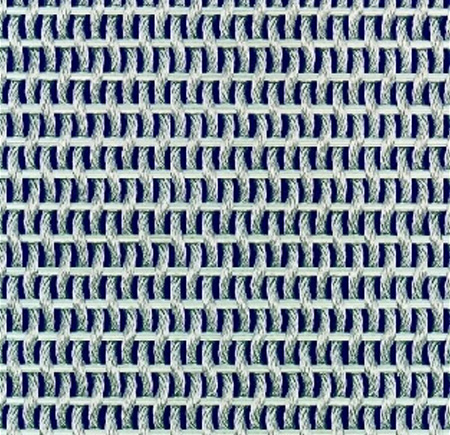

 Evolution
Open Area
:
 approx. 21%
Cable Pitch
:
 5 mm
Weft wire Pitch
:
 10 mm
Thickness
:
 approx. 7.5 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 4 m

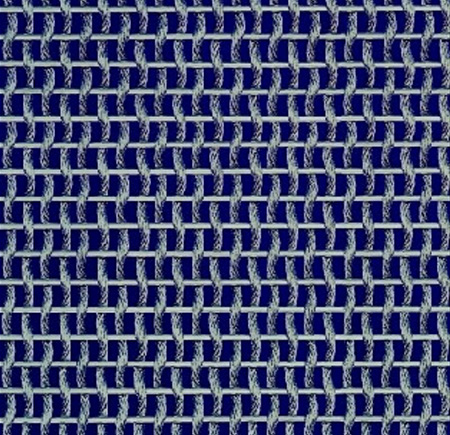

 Palio
Open Area
:
 approx. 43%
Cable Pitch
:
 6 mm
Weft wire Pitch
:
 8 mm
Thickness
:
 approx. 5.5 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 6 m

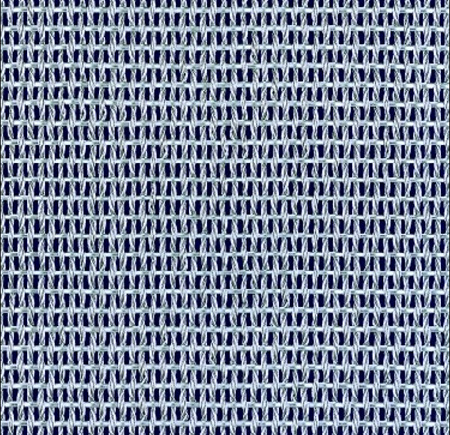

 Dicor
Open Area
:
 approx. 31.7%
Cable Pitch
:
 3.2 mm
Weft wire Pitch
:
 6 mm
Thickness
:
 approx. 3 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 6 m

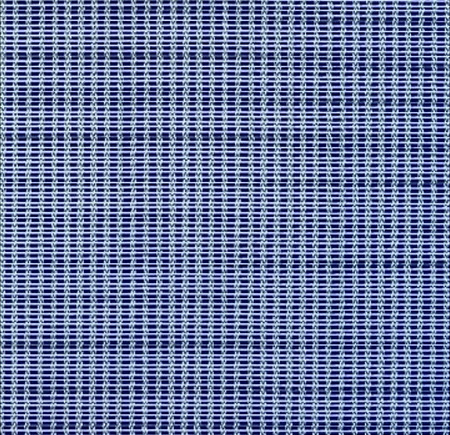

 Mintos
Open Area
:
 approx. 37.2%
Cable Pitch
:
 3.5 mm
Weft wire Pitch
:
 1.43 mm
Thickness
:
 approx.1.3 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 3 m

 Sonata
Open Area
:
 approx. 37.2%
Cable Pitch
:
 3.5 mm
Weft wire Pitch
:
 1.43 mm
Thickness
:
 approx.1.3 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 3 m
 Checkmate
Open Area
:
 approx. 42.3%
Cable Pitch
:
 5 mm
Weft wire Pitch
:
 10 mm
Thickness
:
 approx.1.3 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 4 m

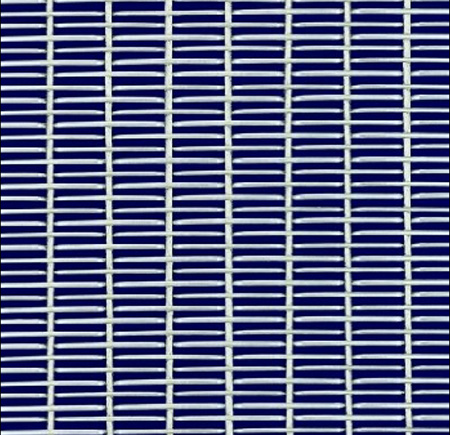

 Helios
Open Area
:
 approx. 57%
Cable Pitch
:
 17.5 mm
Weft wire Pitch
:
 4.5 mm
Thickness
:
 approx.4.5 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 4 m

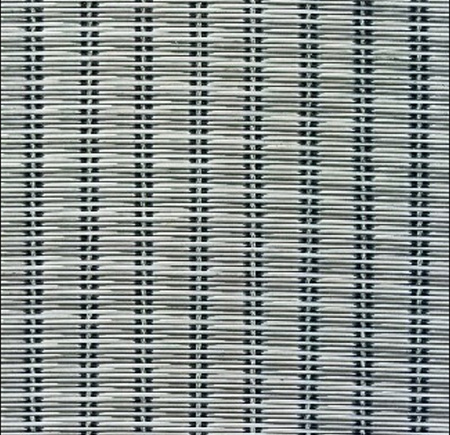

 Bristol
Open Area
:
 approx. 5%
Cable Pitch
:
 17.5 mm
Weft wire Pitch
:
 1.5 mm
Thickness
:
 approx.4.5 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 3 m

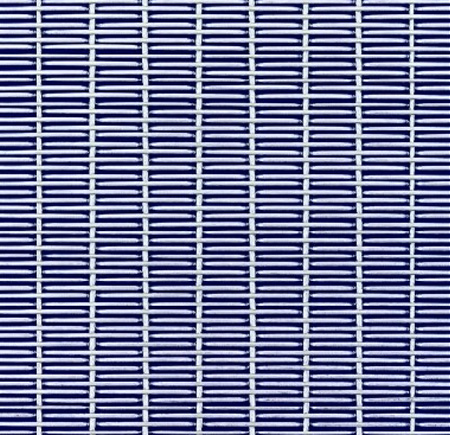

 Opal
Open Area
:
 approx. 35.4%
Cable Pitch
:
 17.5 mm
Weft wire Pitch
:
 2.5 mm
Thickness
:
 approx. 4.5 mm
Maximum mesh width
:
 6.5 m

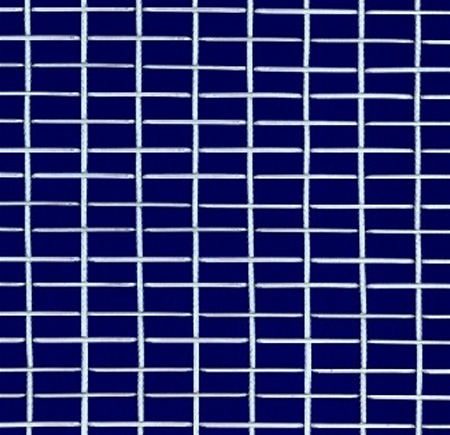

 Pulsar
Open Area
:
 approx 72.9%
Cable Pitch
:
 17.5 mm
Weft wire Pitch
:
 8.5 mm
Thickness
:
 approx. 4.5 mm
Maximum mesh width   6.5 m

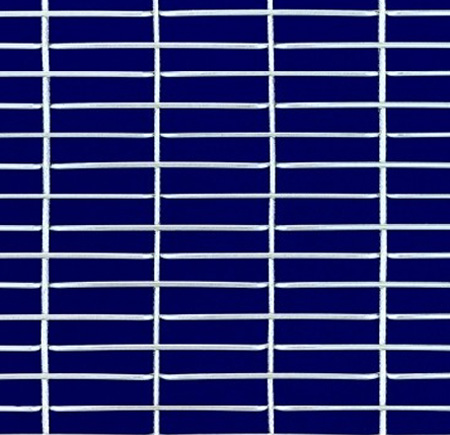

 Endura
Open Area
:
 approx. 75.4%
Cable Pitch
:
 35 mm
Weft wire Pitch
:
 10 mm
Thickness
:
 approx. 4.5 mm
Maximum mesh width
:
 6.5 m

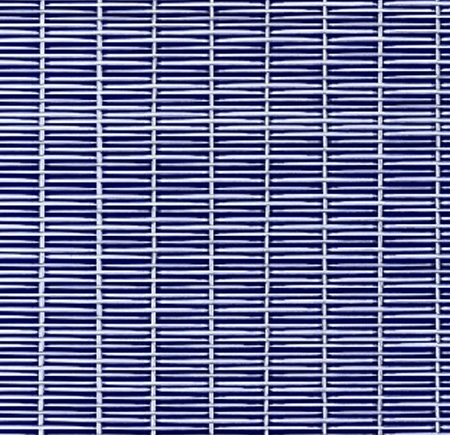

 Twill
Open Area
:
 approx. 41.1%
Cable Pitch
:
 17.5 mm
Weft wire Pitch
:
 2.25 mm
Thickness
:
 approx. 3.2 mm
Maximum mesh width
:
 6.5 m

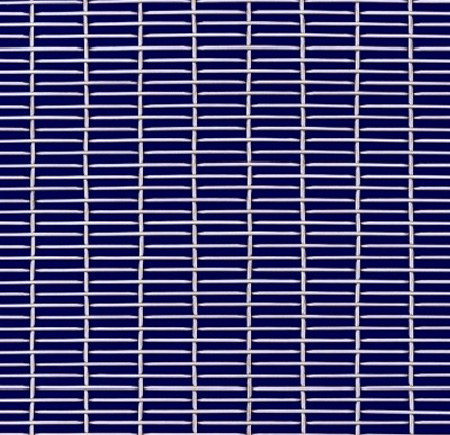

 Asahi
Open Area
:
 approx. 61.7%
Cable Pitch
:
 17.5 mm
Weft wire Pitch
:
 3.75 mm
Thickness
:
 approx. 3.2 mm
Maximum mesh width
:
 6.5 m

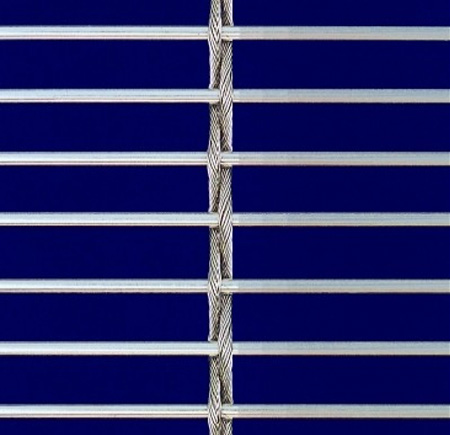

 Broadband
Open Area
:
 approx. %
Cable Pitch
:
 mm
Weft wire Pitch
:
 20 mm
Thickness
:
 12 mm
Maximum mesh width
:
 6.5 m

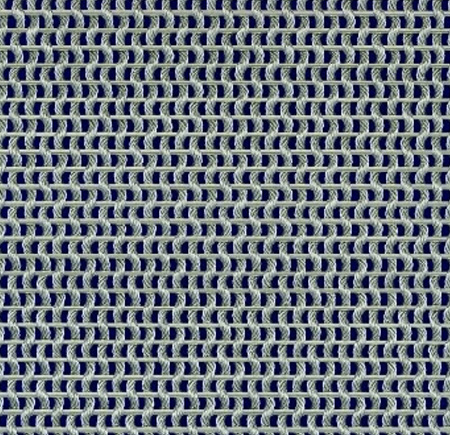

 Shockwave
Open Area
:
 approx. 23.9%
Cable Pitch
:
 4.6 mm
Weft wire Pitch
:
 8.0 mm
Thickness
:
 6 mm
Maximum mesh width
:
 6.5 m

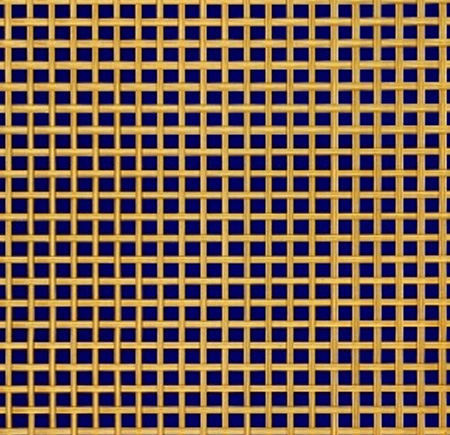

 Algo
Open Area
:
 approx 44.4%
Pitch
:
 7.5 mm
Thickness
:
 approx 2 mm
Maximum mesh width
:
 1 m or 1.3 m

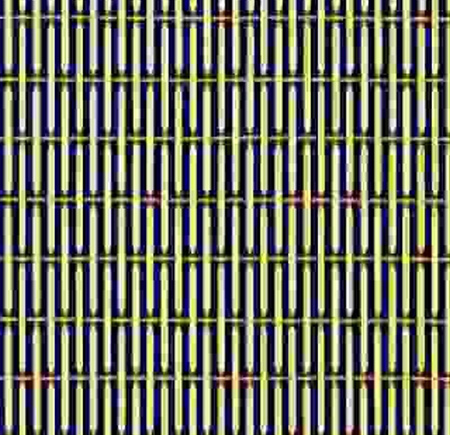

 Blanco
Open Area
:
 approx.45.7%
Pitch wire
:
 110 mm
Pitch wire
:
 1.5 mm : 17.5 mm
Thickness
:
 approx. 3mm
Maximum mesh width
:
 1.3 m
Standard mesh width
:
 2 m

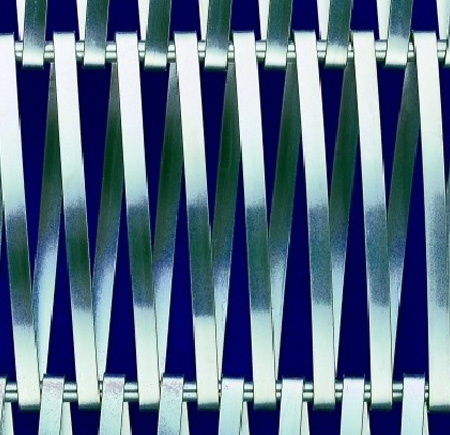

 Foster
Open Area
:
 approx. 50%
Spiral Pitch
:
 20 mm
Red Pitch
:
 100 mm either on request
Thickness
:
 approx. 22 mm
Maximum mesh width
:
 on request


 Castelline
Open Area
:
 approx. 50.0%
Cable Pitch
:
 17.5 mm
Weft wire Pitch
:
 3.5 mm
Thickness
:
 approx.4.5 mm
Maximum mesh width
:
 6.5 m
Standard mesh width
:
 4 m
